Regia mobile HD con 8 telecamere

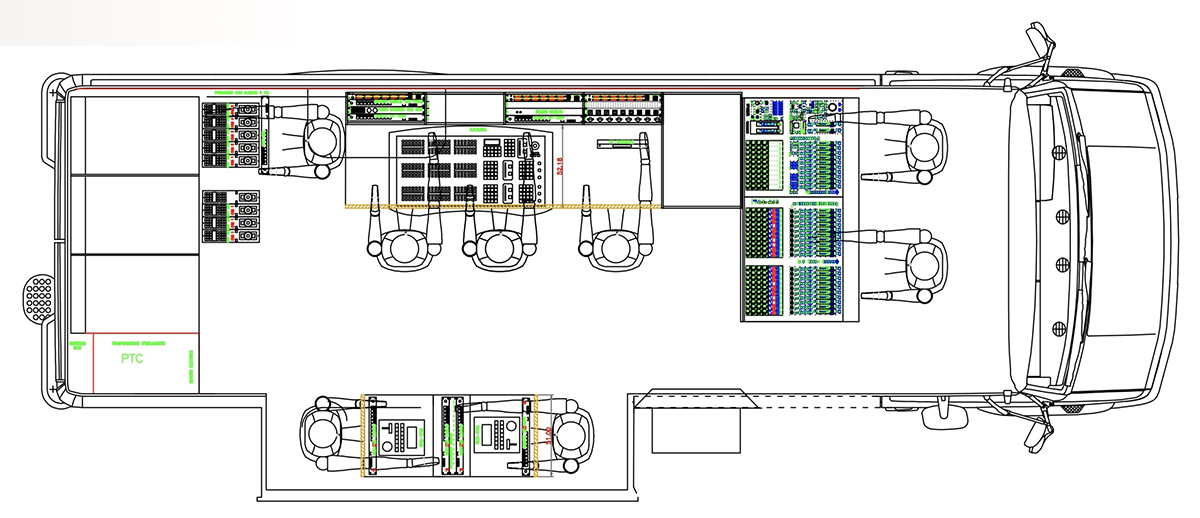

MERCEDES VARIO 816D – Weight: 7.5 tons – L: 7.20 m – H: 3.30 m – W: 2.10 m – ER 010 NB
L’OB Van 8 è il meglio per la produzione e la trasmissione satellitare in HD. Antenna da 180 cm ADVENT con amplificatore allo stato solido, Encoder Ericsson AVP3000 Voyager, 5 telecamere LDX86N / 8 telecamere HD LDK8000 Grass Valley, Mixer Video Kahuna, BLT o EVS, Mixer Audio Studer Vista5 M2, sistema Dolby e Intercom Eclipse Pico Clearcom.

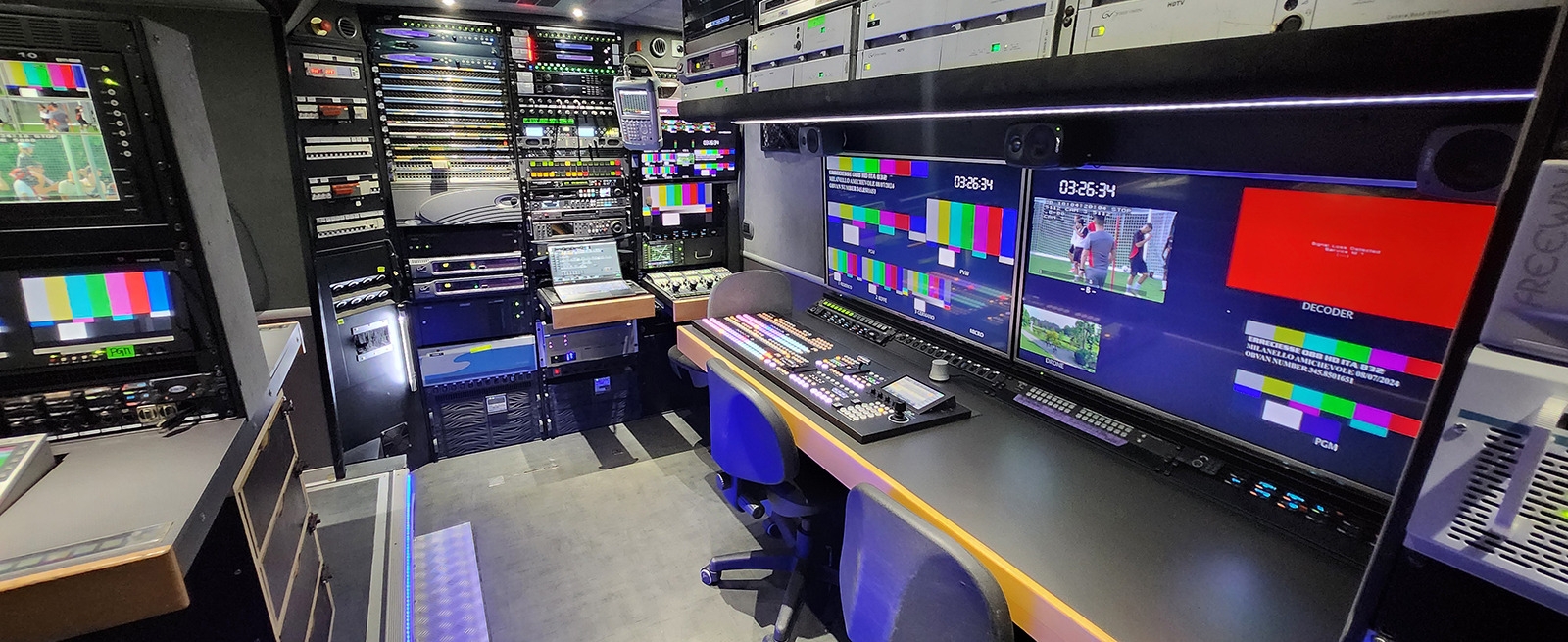

Video |
||
|---|---|---|
| 4K UHD 1080p 3G Cameras | 5 | LDK8000 “WORLDCAM” ThomsonLDX86N Grass Valley / n° 8 LDK8000 “WORLDCAM” Thomson |
| 4K UHD/HDTV lenses Fujinon | 2 | 107×8.4, n°2 23×7.6, n° 3 18×7.6, n°2 14×4.5 wide |
| Fiber/Triax control camera units | 5 | XCU fiber / n° 8 CCU Triax HDTV with OCP 400 |
| Master control panel | 1 | MCP 400 Thomson |
| HDTV Digital Video Switcher | 1 | Forà HVS-2000 2 M/E 48 input 1 AUX Panel |
| HDTV Videorecorders | 2 | XD Cam |
| HDTV Disck recorders | 1 | BLT / EVS 12 channels HD SMS 4U |
Monitors |
||
| Control Monitors | 2 | LED 42”, n° 1 LED 32”, n° 1 TV Logic |
| 2 | VR82DP HD/SDI Marshall, n°2 QV171HD/SDI 17.0” | |

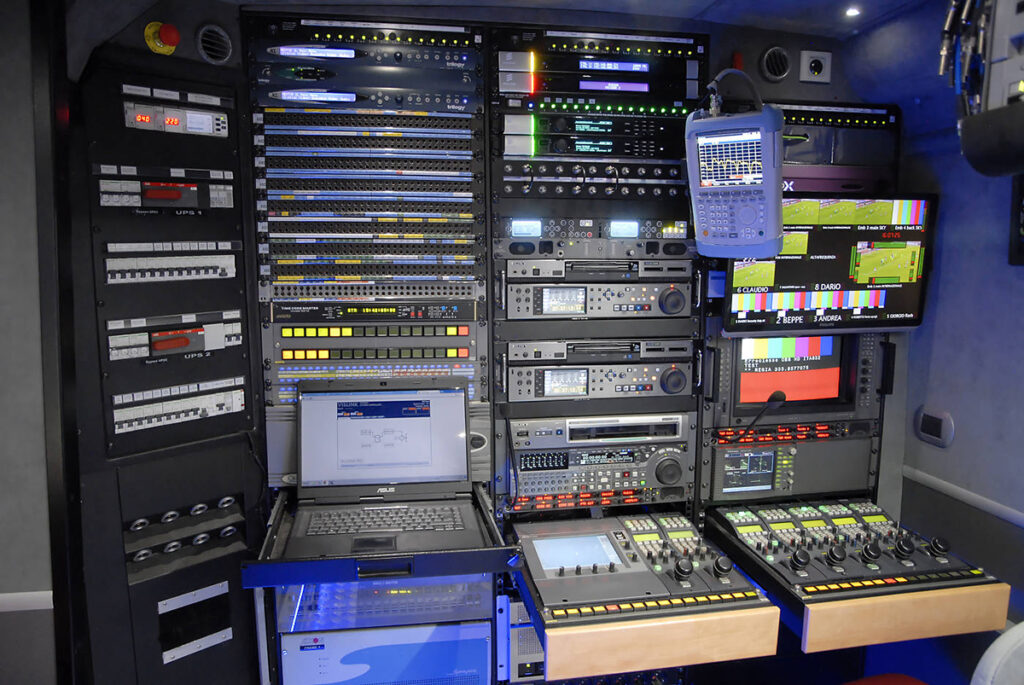

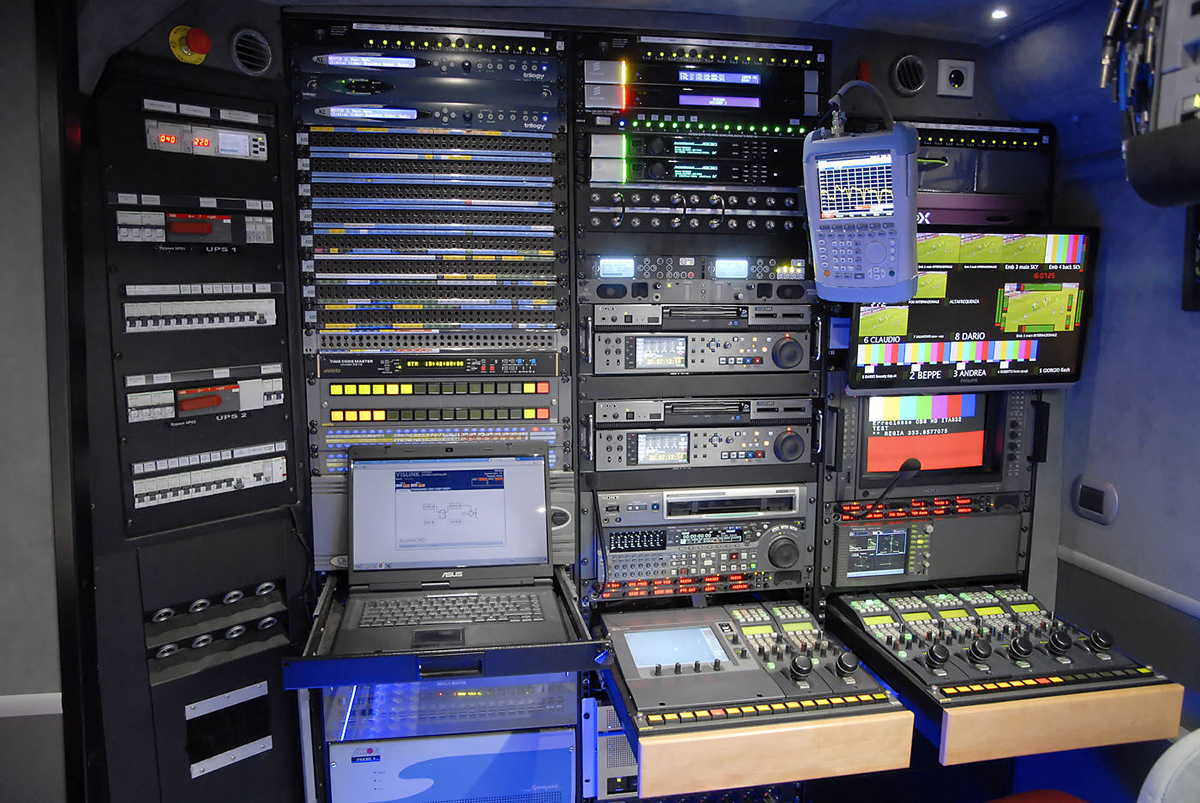

Engineering |
||
| Multiwiev KALEIDO | 1 | 32×32 4 out MIRANDA |
| HDTV Video Router | 1 | Multiformat 64x64XE4 HD/SD Quartz/Evertz |
| Video Router 1080p 3G | 1 | 34×34 HD Forà MFR-3232RPS |
| Video control instruments | 1 | WFM 8200 HD Lcd Tektronix |
| Main & Slave SPG | 2 | Mentor XL with HDTV id and Mastermind automatic change over |
| Dynamic under monitor system | 1 | Kaleido |
UP LINK System (Ku Band Transmit) |
||
| Antenna | ADVENT Visilink Newswift HD 180 cm | |
| Transmit System Ku Band 200W | 2 | HPA amplifier SOLID STATE Wavestream POB-KUE200 BUC |
| System Controller | 1 | ASC 5000 |
| Encoder Ericsson MPEG4-422 | 2 | AVP3000 Voyager MPEG-2 – MPRG-4 |
| Decoder Ericsson | 2 | RX8200 MPEG-2 – MPEG-4 |

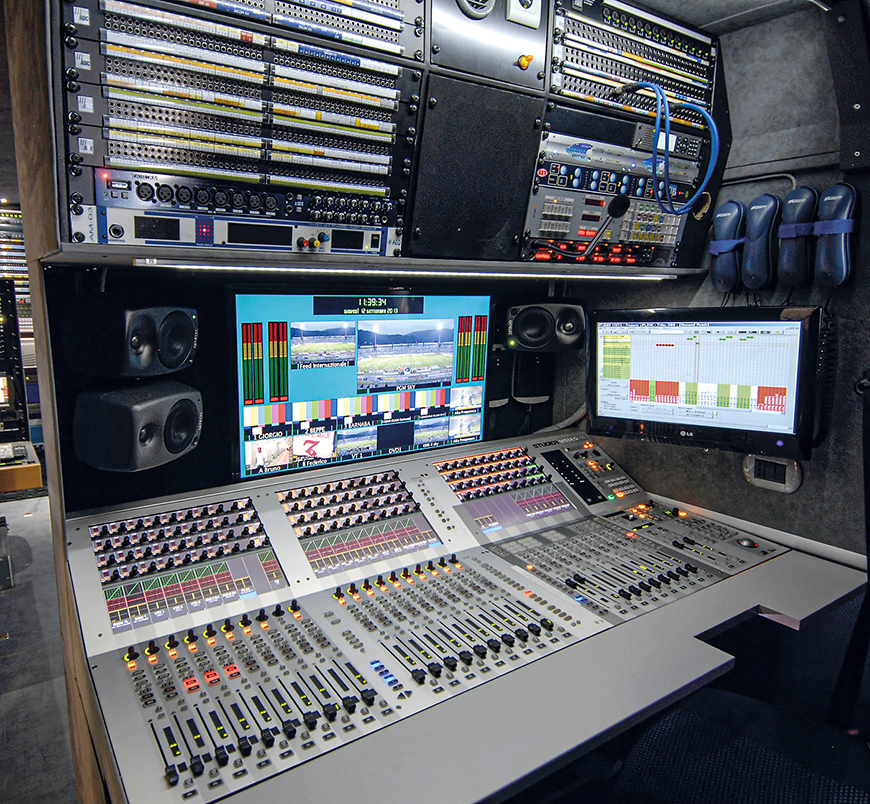

Audio |
||
| Digital audio mixer | 1 | Studer Vista 5 M2 |
| Audio Router | 1 | 64×64 Probel AES/EBU |
| Encoder e Decoder Dolby 5.1 | 1 | DP564 Dolby Digital®/Dolby Prologic II® audio decoder |
| 1 | DP572 Dolby E® audio decoder | |
| 1 | DP563 Dolby PrologicII® audio encoder | |
| 1 | DP571 Dolby E® audio encoder | |
| 1 | DP570 Audio tool | |
| Embedded | 6 | HEB 880 HD/SDI Axon 8 ch |
| De-Embedded | 2 | HDB 880 HD/SDI Axon 8 ch |
| Audio monitor | 5 | 8020A Genelec |
| 1 | 7060B Subwoofer attivo 120W for Dolby Sorround | |
| Phone-hybrid | 2 | AEV ITB 302, n° 2 Cellular Hybrid |
| 2 | Cellular Hybrid | |
| Wireless UHF microphones | 3 | hand-held MTH300 n° 3 Lavalliere MTP30-L Wisycom |
Intercom |
||
| 32 channels intercom | Clearcom Pico | |
| Full duplex In Ear Monitor | 1 | system w/4 pocket transceiver Sennheiser |
| Wireless-headset | 8 | mobile Motorola TLK100 |
| Commentator booth equipment | 3 | AB100 Clearcom / Sonifex |
